Pan-OS 10.0: Management features
Palo Alto Networks
Do you have a state-of-the-art firewall from Palo Alto Networks today?
In this rapidly-evolving technological world, it is crucial to check whether your firewall can still face current and future threats. Our Palo Alto experts have created a checklist with 7 items to help you protect your organization.
Go to the checklistLegacy port based to app-id security policy converter.

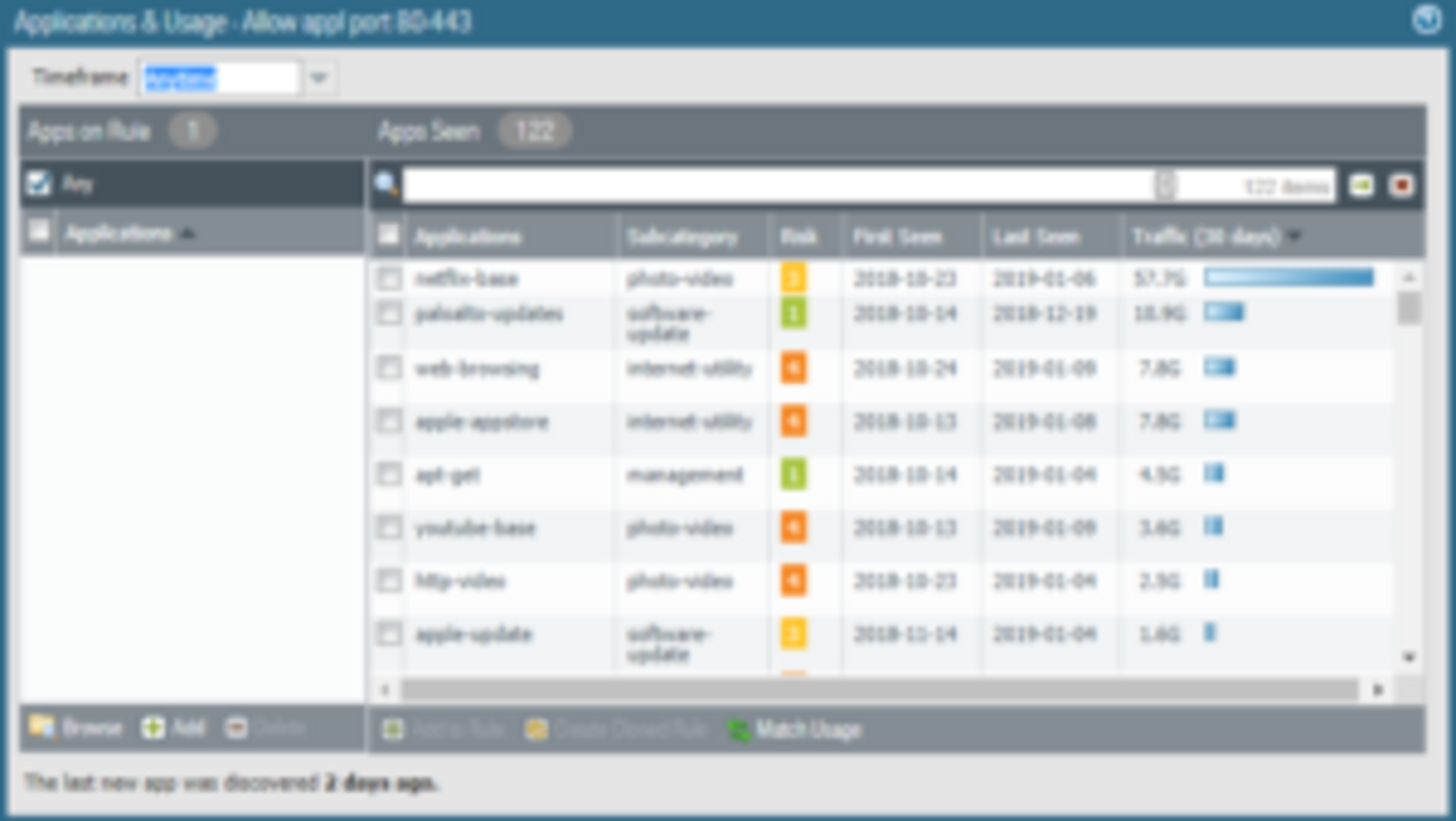

Legacy Port-Based to App-ID Rule Converter identifies port-based Security policy rules so you can convert them to application-based rules without compromising application availability and identifies rules configured with unused applications. Rule Usage application information helps you prioritize which port-based rules to migrate to application-based rules first, identify rules to clean up, and analyze rule usage characteristics. Use Legacy Port-Based to App-ID Rule Converter to maintain the rulebase as you add new applications.
Audit information, unique id, creation date and modified date for policies.

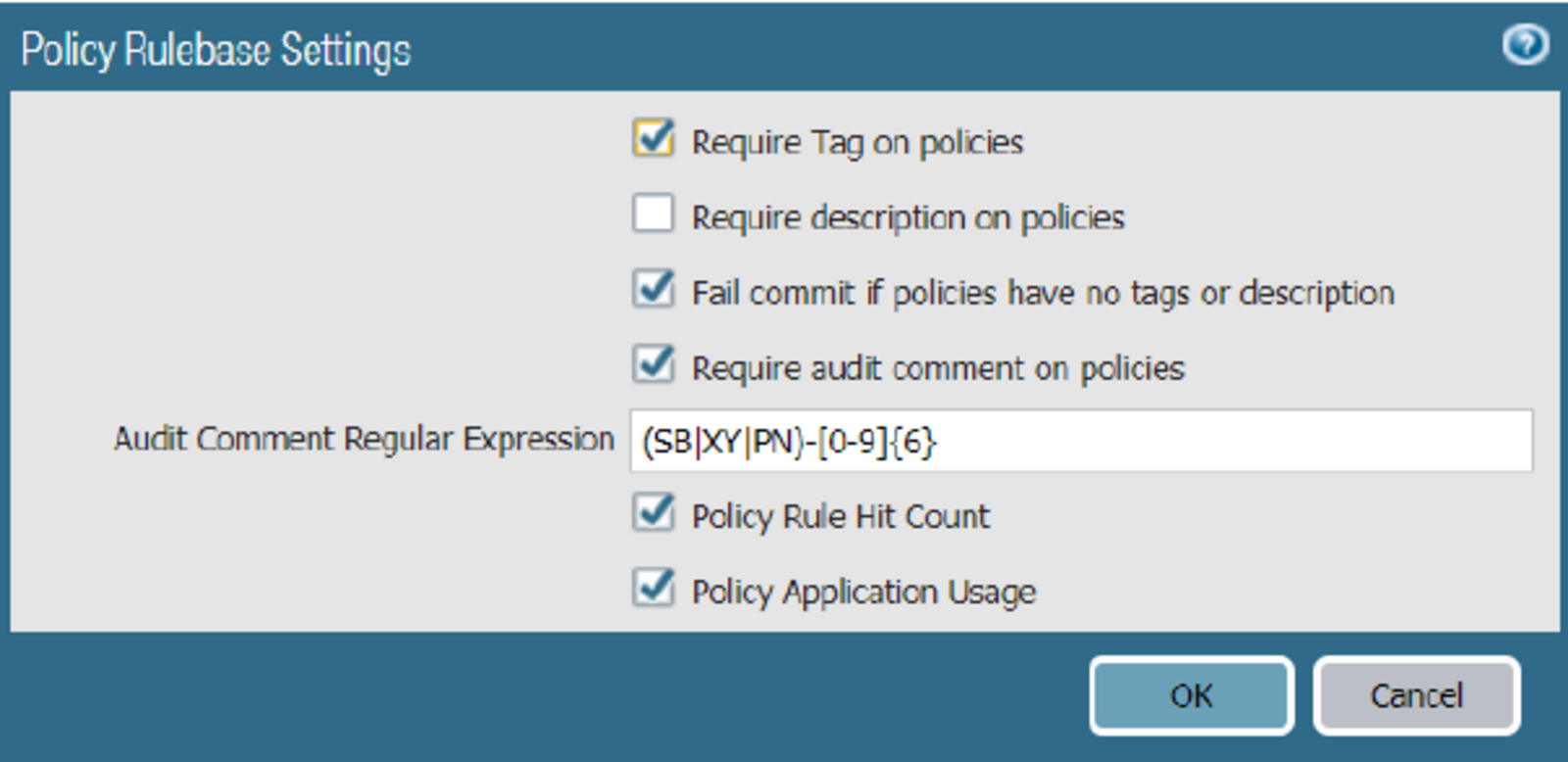

When you periodically review your policy rules, you need to know what the rule is intended to secure, what the change history for the rule is, how to tag rules so that you can organize your policy rule base, and how to locate a specific rule or set of rules. With the Enforcement of Rule Description, Tag and Audit Comment, you can require a description, audit comment, or tag when creating or editing a rule in the policy rule base for auditing, grouping and change tracking for rules in your policy rule base. For uniformity, you can set specific requirements for what the audit comment can include. The description, tag, and audit comment are not required by default, and you can select whether a description, tag, audit comment, or any combination of the three is are required to successfully add or modify a rule. View the Rule Changes Archive to view the audit comment history for a selected rule.

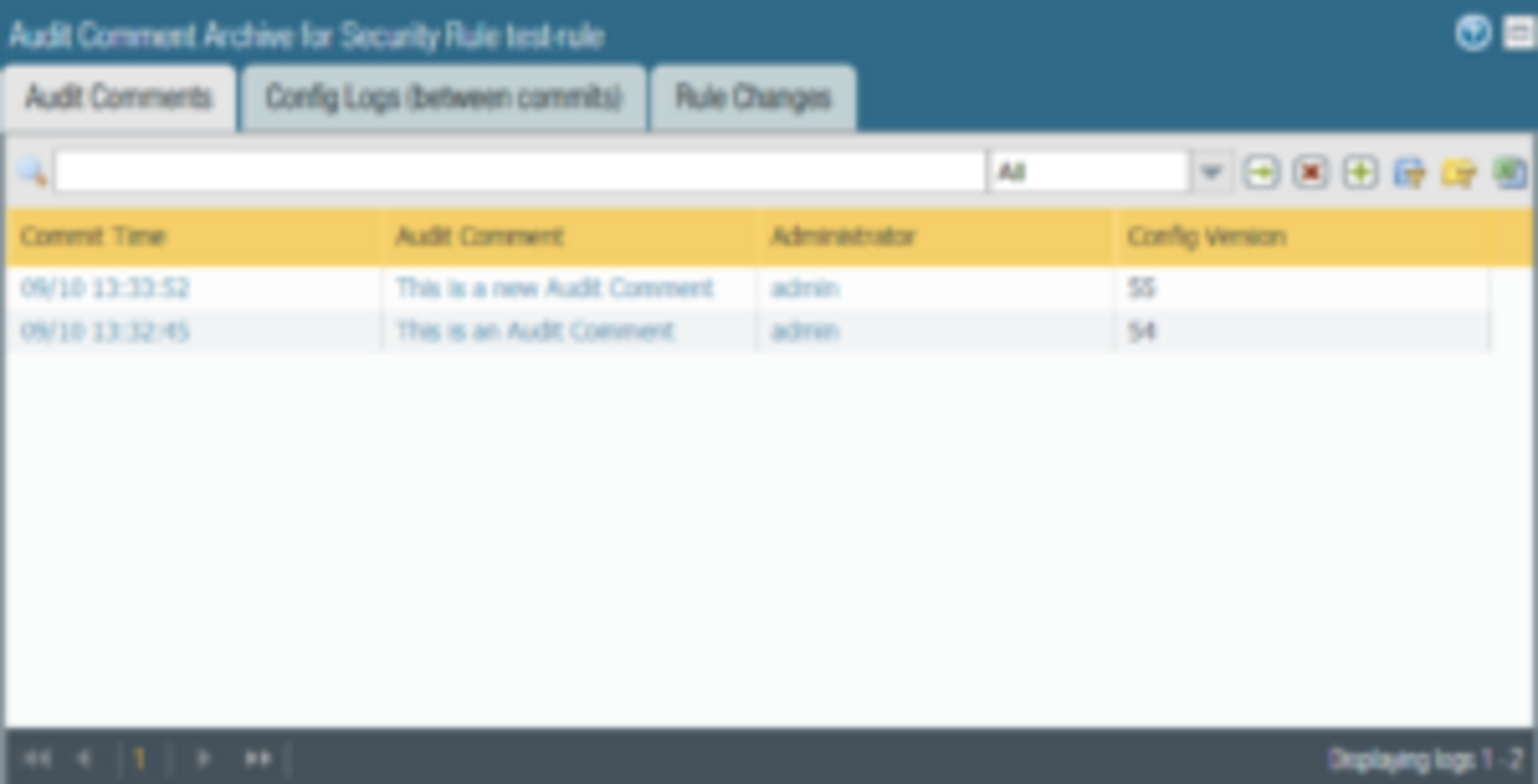

As your rulebase evolves, changes and audit information get lost over time unless they are archived at the time the rule was created or modified. The Rule Changes Archive is complimented by the Enforcement of Rule Description, Tag, and Audit Comment, and allows you to view the Audit Comment Archive, which contains audit comment history, configuration log history and enables you to compare rule configuration versions for the selected policy rule.
Audit information :

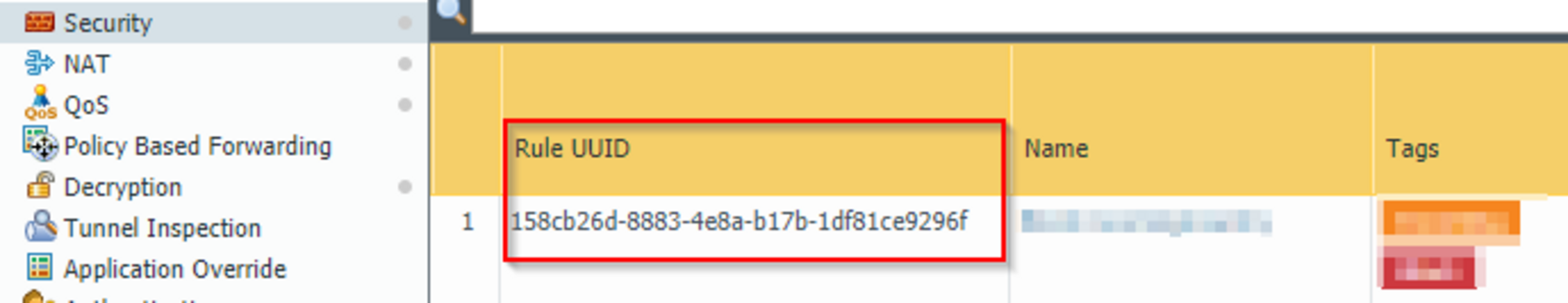

Unique identifier :

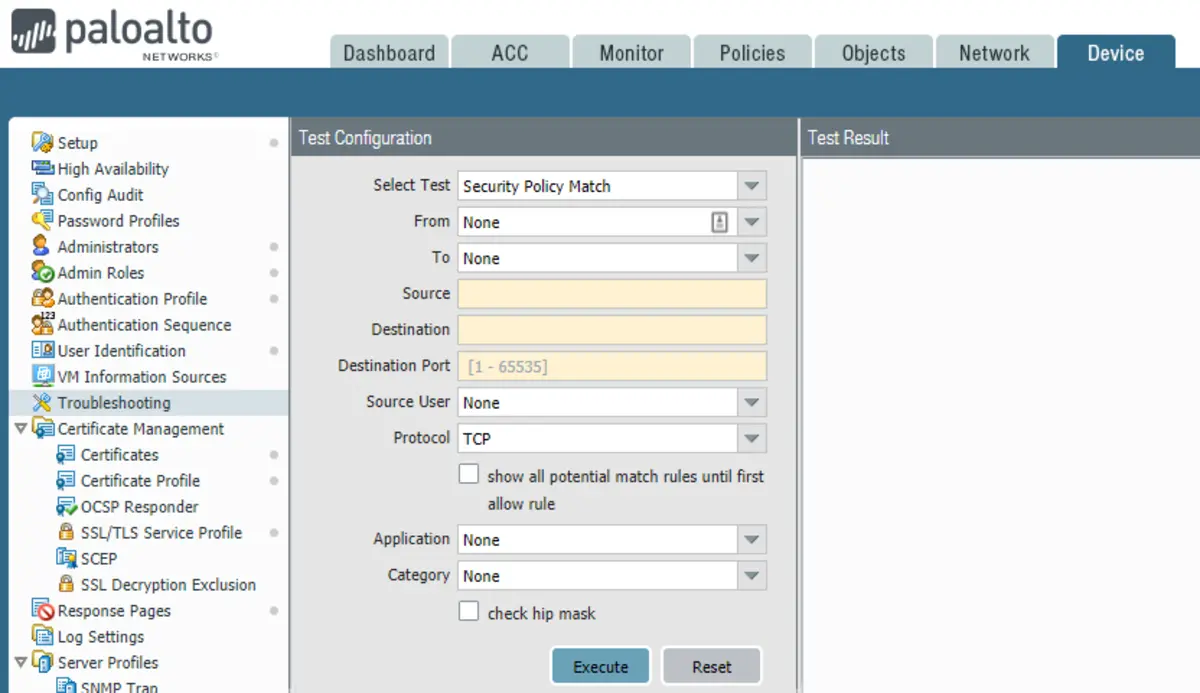

Policy testing from the management interface.

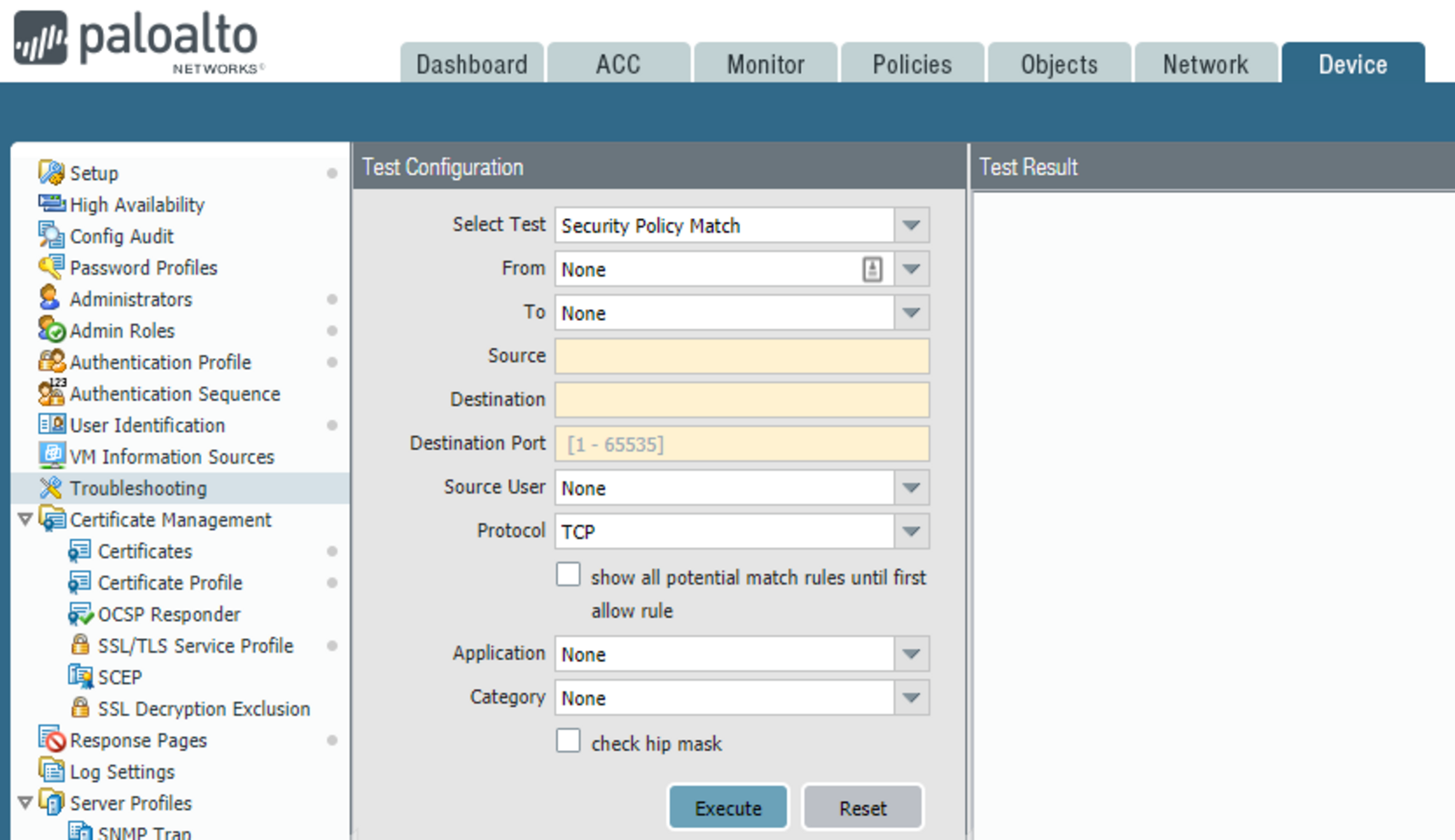

You can test policy rule and device configurations to ensure the running configuration appropriately secure your network and maintain connectivity to important network resources. In PAN-OS 9.0, you can perform policy match and connectivity tests for devices directly from the web interface rather than the CLI. By surfacing the policy match and connectivity tests to the web interface, you can easily test and verify traffic and connectivity to ensure policy rules are allowing and denying the correct traffic, and that devices can connect to network resources such as WildFire, Log Collectors, or the configured Update Server.
Policy testing from the management interface.
You can test policy rule and device configurations to ensure the running configuration appropriately secure your network and maintain connectivity to important network resources. In PAN-OS 9.0, you can perform policy match and connectivity tests for devices directly from the web interface rather than the CLI. By surfacing the policy match and connectivity tests to the web interface, you can easily test and verify traffic and connectivity to ensure policy rules are allowing and denying the correct traffic, and that devices can connect to network resources such as WildFire, Log Collectors, or the configured Update Server.
Application default for SSL decryption
Application default is a feature of Palo Alto Networks next-generation firewalls that enables you to allow applications only on their standard ports. However, when an application is SSL-encrypted, it might use a different default port than the port it uses when in cleartext. Now, application default is extended to allow certain SSL-encrypted applications on the default SSL secure port, in addition to the application’s standard port:
- For a clear text session, application default matches against the Standard Port for the application.
- For a decrypted session, application default matches against the Secure Port for the application.
For example, a security policy designed to allow web-browsing on only the application default ports will now strictly allow:
- cleartext web-browsing traffic on the standard port (port 80)
- and SSL-tunneled web-browsing traffic on the secure port (port 443).

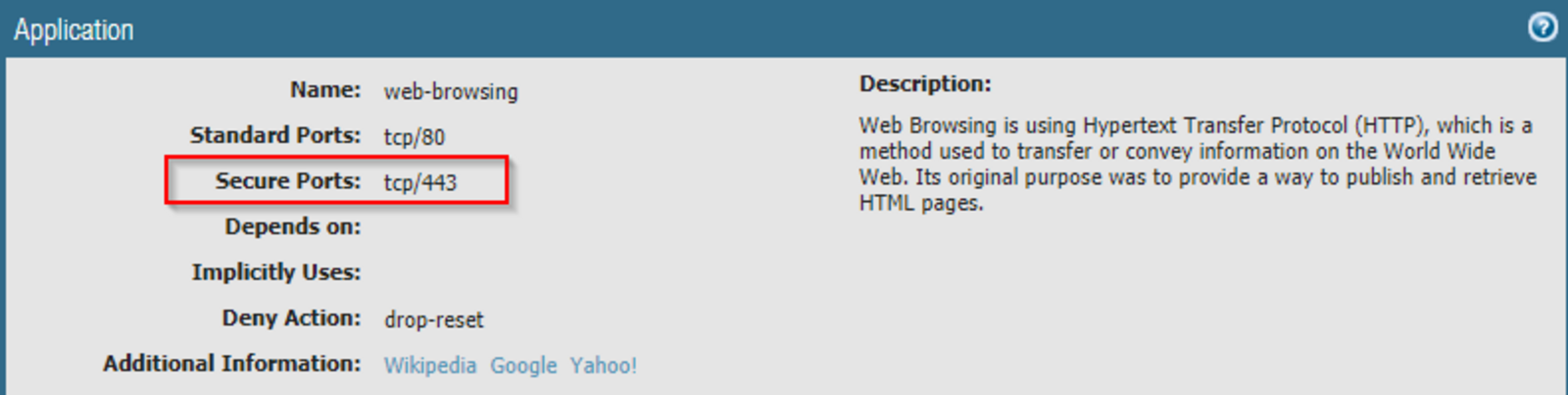

Application default for both standard and secure ports is supported for web-browsing, SMTP, FTP, LDAP, and IMAP traffic. For any of these applications, you can view the Secure Ports that Palo Alto Networks has defined for the application, and on which the application default setting can enforce the application.
Redesigned API Json and API key lifetimes.
The new PAN-OS REST API allows you to access the Policy and Network resources on the firewall as toplevel URIs. You can use these APIs to create, update, and delete these resources directly on the firewall or from Panorama.

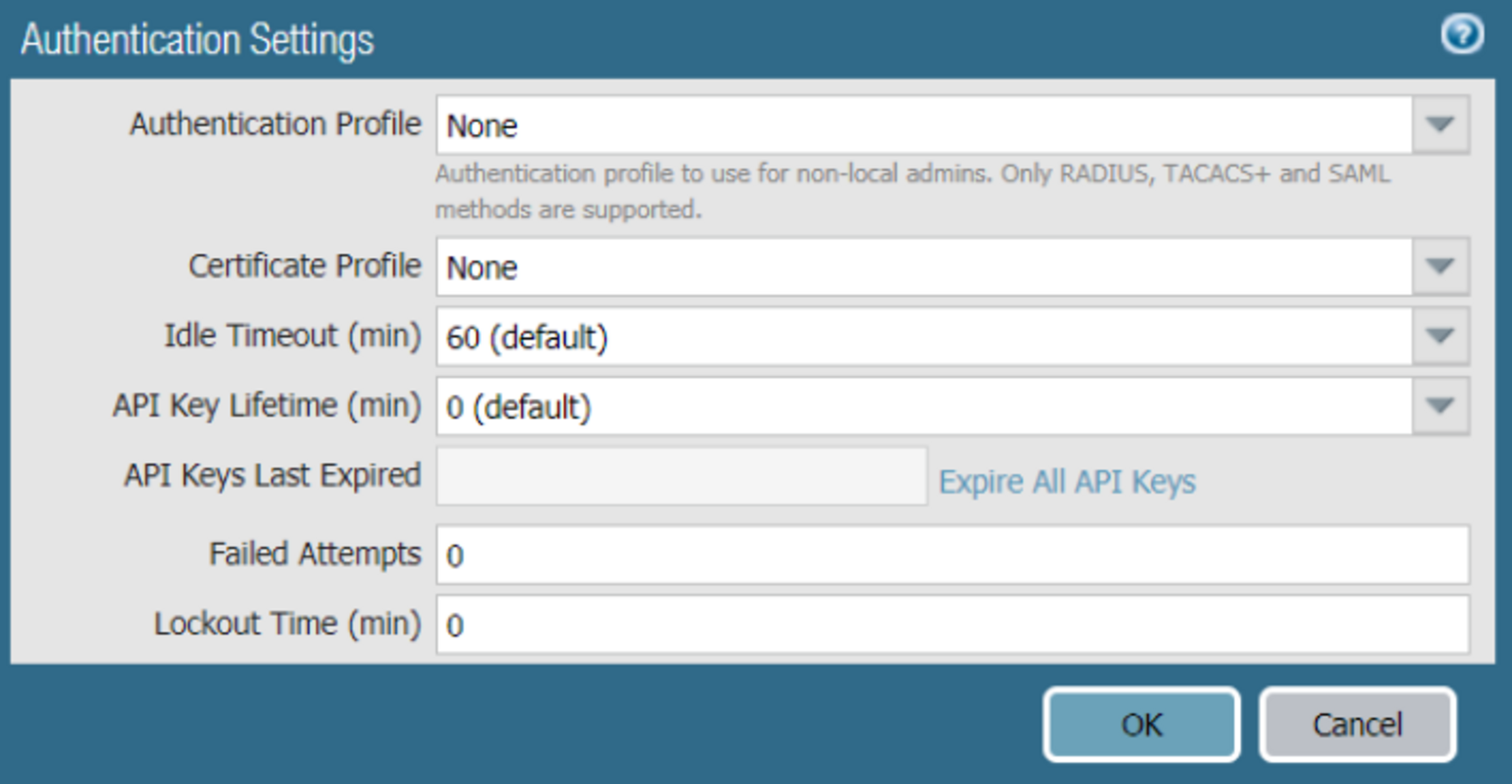

To use the API on the firewall and Panorama, you need to generate an API key that authenticates API calls to the XML API and new REST API. Starting with PAN-OS 9.0, you can now specify an API key lifetime to enforce key rotation and have the ability to revoke all currently valid API keys, in the event one or more keys are compromised. When you generate a new API key, after you specify the key lifetime, each key is unique. These new capabilities help you protect your keys and meet the audit and compliance requirements for your enterprise.
Filter in the logs based on object names.

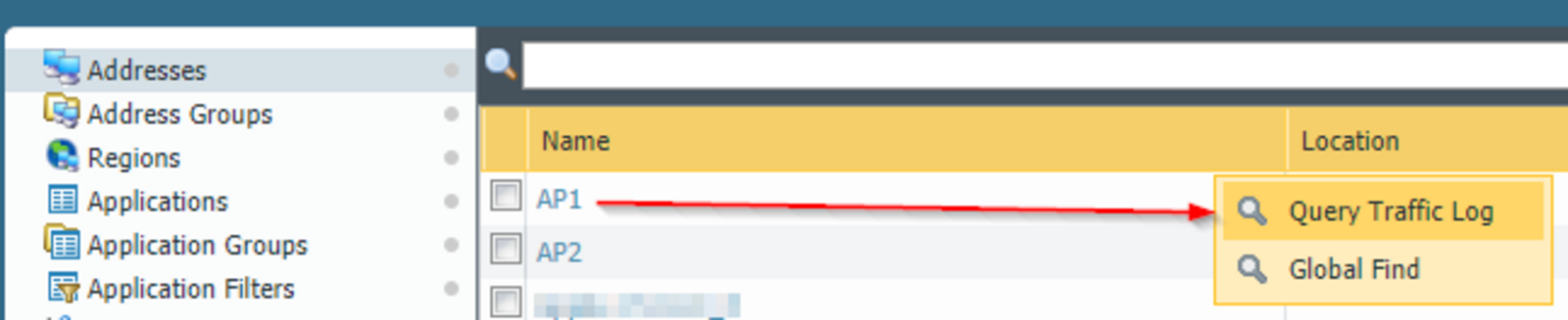

New option added to Query the logs in the object context. This will create a filter with the object name and open the traffic log with this filter.
